My Home Setup (12 Core/64GB PC, Gigabit Networking & Mesh Wi-Fi)

I freely admit that my study (and PC) looks a bit… boring:

A photo of my study with my computer case on the floor
A photo of my study with my computer case on the floor

The lack of sparkly RGBs or triple 4K monitors means that I won’t win any style awards. However I’m actually pretty happy with my home computing setup, which includes a fairly powerful 4K video editing PC (that has 12 cores and 64GB of RAM), 1 gigabit networking throughout my house, multiple mesh Wi-Fi points and a Synology NAS.

So I wanted to shoot this video and run through my home computer set-up, and discuss what I like (and dislike) about it (please read on if you prefer text to video though):

My Windows PC

My current computer looks like this (keep scrolling for specs though):

My current computer with final cable management
My current computer with final cable management

I actually ran it without any cable management for two whole years (whoops!):

Various power cables have been installed in my build but there is no cable management yet
Various power cables have been installed in my build but there is no cable management yet

Note: I show how I eventually cable managed this mess in this project log video.

Specs

  • Case: Corsair Carbide 88R MicroATX
  • Motherboard: ASUS TUF Gaming B550M-Plus
  • CPU: AMD Ryzen 9 5900X
  • Cooler: Noctua NH-C14S
  • RAM: Corsair Vengeance RGB PRO 64GB (2x 32GB) DDR4 3200MHz
  • GPU: AMD Sapphire RX 6700XT 12GB
  • Storage: 2x WD Black SN850 M.2 SSDs Gen4 w/ aftermark ELUTENG heatsinks
  • PSU: Corsair RM750x White

Extra Info

My PC uses an old Corsair Carbide 88R case which is microATX and it has SOME cable routing holes, but overall it’s quite a small case so cable management can be a bit difficult. The case supports up to 38cm graphics cards “in theory” but in practice it’s closer to 30cm – which was usually fine in the past, but nowadays some GPUs are starting to become too big for the case.

Me measuring up available GPU space inside my mini ATX case
Me measuring up available GPU space inside my micro ATX case

So I could see myself getting a new case at some point, but right now this works well.

The actual build itself is very AMD centric, with an ASUS B550M-Plus motherboard and a Ryzen 5900X CPU. I love my AMD Ryzen 5900X – it has 12 cores, 24 threads and it makes light work of 4K video rendering. My PC will lag a bit when it’s rendering since all cores are in use, but otherwise my PC has no slowness at all.

The CPU section of Windows Task Manager showing various CPU spikes on some threads
Showing the 24 threads of my 5900X in Windows Task Manager

To be honest, I haven’t even bothered to overclock the CPU because it already does everything I need it to do, although naturally this chip does have some headroom if I did want to explore overclocking.

I chose to cool it with a Noctua air cooler (for reasons I discuss in another video) and I get pretty good cooling performance from it. Plus this unit of a cooler actually fits in my case, which is a bonus.

The top fan of my Noctua NH C14S CPU cooler for my AMD Ryzen CPU
The top fan of my Noctua NH C14S CPU cooler for my AMD Ryzen CPU

The RAM is Corsair Vengeance and it has sparkly RGBs – not because I like RGB, but it was cheaper than the other options. When purchasing my PC in 2021, DDR5 wasn’t really a viable option for me so my RAM is naturally DDR4 running at 3200 megahertz. I ended up paying for 64 gigabytes of RAM thinking that I might sometimes exceed 32 gigs when video editing, but to be honest I rarely get above 25 gigs of RAM usage. Nonetheless I like having the extra headroom in the RAM, just in-case I need to open some new tabs in Chrome or something!

For my graphics card, I spent ages debating between an AMD GPU or an NVIDIA 3060 Ti or 3070 (something I discussed more in another video), but I ended up choosing a 6700XT which comes with 12GB of VRAM – a decision I’m pretty happy about because so many games nowadays seems to need huge amounts of VRAM.

The box of a AMD Sapphire RX 6700XT Radeon graphics card GPU
The box of a AMD Sapphire RX 6700XT Radeon graphics card GPU

4K gaming on simple games like Rocket League works fine, although it will drop to 30 to 40 fps in games like Sniper Elite 5, and it will drop below 30 fps in the most graphic intensive games. This isn’t entirely unexpected though because the 6700XT was only ever marketed as a 1440p card.

Finally, my PC build then has a white Corsair RM750x modular PSU and two WD Black SN850 NVMe drives which are really fast. One is my boot drive while I store videos and games on the other. I cool them with aftermarket heatsinks because they are PCIE4 which can get fairly toasty at times. My motherboard does have a built-in heatsink but this only covers one drive, so I just left this heatsink off and used the aftermarket ones instead.

Two M.2 NVMe drives installed in an Asus B550 Plus motherboard
Two M.2 NVMe drives installed in an Asus B550 Plus motherboard

Overall I love this PC. Yes it’s not really up to 4K gaming standards, but I use it more for video editing than gaming – and I don’t mind gaming in 1440p instead when I need to. So I’m not planning any upgrades to it anytime soon.

My Home Network

I moved into a new construction home in 2023 and it luckily had CAT6 RJ45 ports in various rooms, allowing me to achieve wired backhaul across my 4x Eero Pro 6 mesh set-up. I also have a symmetric 500Mbps up/down internet connection, meaning that most of my devices get full 500 Mbps download and upload speeds – which is pretty nice.

My understairs cupboard (where the ISP fibre cables come in) looks like this:

The various networking cables and equipment in my cupboard
The various networking cables and equipment in my cupboard

My study then contains a NAS, PoE switch and more and it looks like this:

My study containing my NAS two switches and more
My study containing my NAS, IoT hub, two network switches and more

Summary

  • A mix of CAT6 and CAT7 cables throughout the house.
  • A CAT7 and fibre optic cable has been run into the detached garage too.
  • Four ‘Eero Pro 6‘ routers are used to provide gigabit WiFi 6 speeds throughout the property.
  • I’ve run four CAT6 cables into the loft to power my PoE Annke cameras.

Extra Info

My home network relies on a mix of Ethernet and Wi-Fi (of course). I am lucky enough that my home had various CAT6 RJ45 ports pre-wired, meaning that I could easily put three Eero Pro 6 routers around my home and get wired backhaul throughout.

Three of my four Eero Pro 6 routers
Three of my four Eero Pro 6 routers

This setup results in really low pings when gaming, often between 10 and 20ms. The only lag I experience is from Rocket League’s dodgy servers!

My low 16ms ping in Rocket League online games
My low 16ms ping in Rocket League online games

Before this setup, I tried using Powerline adapters and they were fairly unreliable in both my previous and current house – I would get random disconnections or lag spikes multiple times a day.

I also have a number of PoE security cameras that record to my NAS 24/7:

Installing two PoE Annke cameras
Installing two PoE Annke cameras

I have ran multiple CAT6 cables from a PoE switch in my study to my loft, which are then used to drive these cameras:

Various Ethernet cables in my loft
Various Ethernet cables in my loft

I also ran a CAT7 cable and fibre optic cable out of my house, and through my backyard:

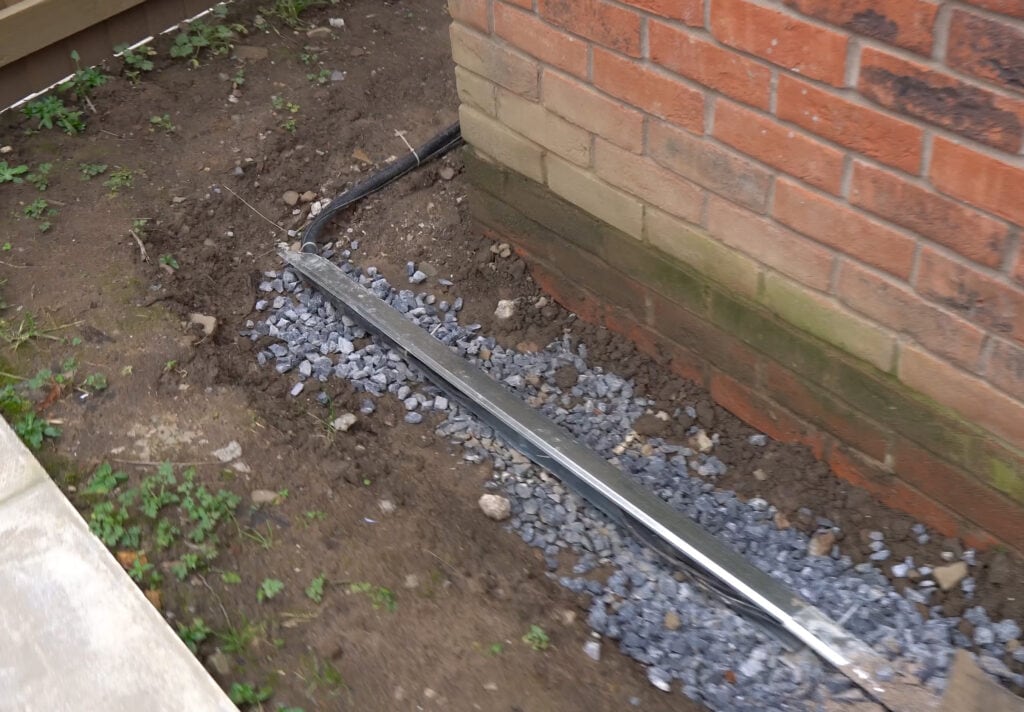

Unfinished shallow trench
Unfinished shallow trench

This allowed me to get full, wired internet connectivity in my detached garage which is 15-20 metres away. I then surge protected it as I covered in another video.

My garage setup without the ground wire protecting the Ethernet
My garage setup without the ground wire protecting the Ethernet

This set-up means that I get 200+ megabit connection speeds at any point on my property, and also when I’m in the car just outside my home. That’s pretty awesome IMO!

My NAS

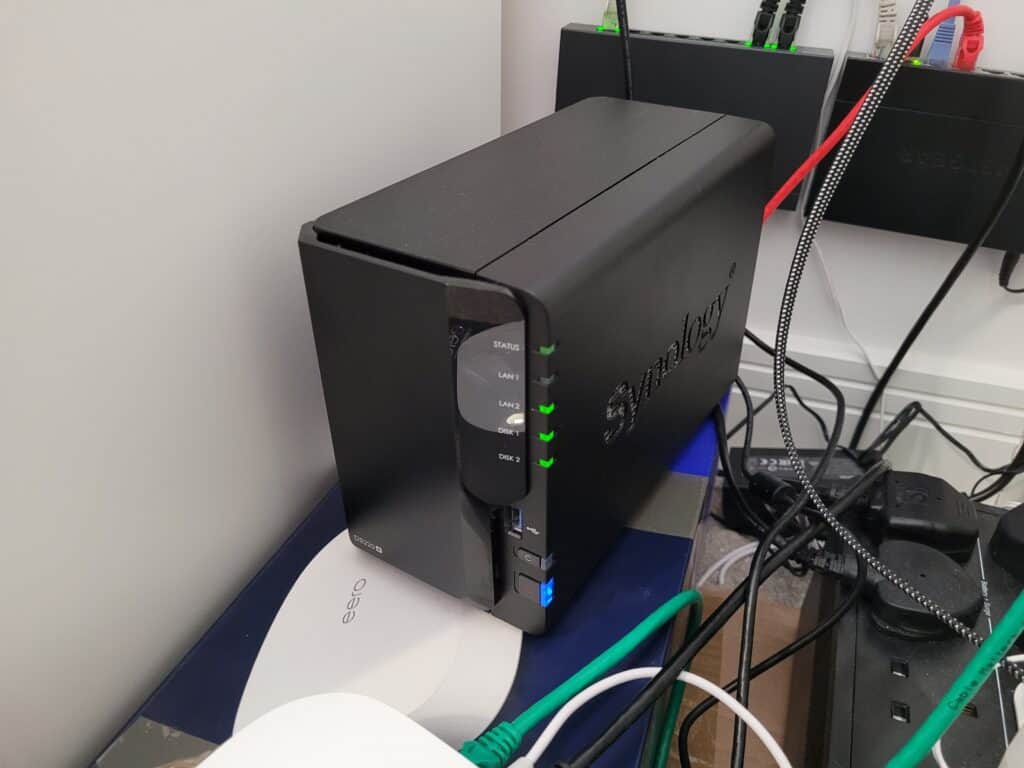

Picture of my Synology DS220 plus NAS
Picture of my Synology DS220 plus NAS

Specs

  • NAS: Synology DS220+
  • Drives: Seagate Ironwolf 4TB HDDs (3.6TB usable)
  • RAID: SHR (Synology Hybrid RAID)

Extra Info

We have a few different PCs and laptops at home, and it’s not always practical (or advisable) to rely on cloud storage for ‘sharing’ files between different computers. That’s naturally where a NAS – network attached storage – comes in. I have a Synology DS220+, which is a mid-range 2-bay NAS.

My Synology DS220 NAS with two internal drives connected to a network switch
My Synology DS220 NAS with two internal drives connected to a network switch

While it’s not some thousand dollar box, I love it. It’s fast, smooth and reliable. Before Synology I had an old DLink NAS which was… not great. But everything about Synology is better – thankfully! When spec’ing out my NAS, I knew that I didn’t want to edit video directly from it – it would mainly be a backup storage box, and a way of sharing certain files with other computers in the household.

As a result, I went with two 4TB Seagate IronWolf hard drives which I naturally run in RAID (or Synology’s Hybrid RAID solution, to be precise).

Because RAID isn’t a backup, of course, I then use Synology C2 storage and HyperBackup to ensure that all my files and data is backed up nightly.

A look at the cloud backup of my Synology NAS files
A look at the cloud backup of my Synology NAS files

This setup works well for me and I get over 100 megabits per second read/write speeds from the NAS, meaning that I can pull large 4K video files from it in a fairly small amount of time. This is good enough for my purposes right now, so I don’t feel the need to upgrade the drives to SSDs or anything like that.

My Chromebook

My Acer Chromebook 315
My Acer Chromebook 315

I have an Acer Chromebook 315 which is fairly low powered – but it does exactly what I need it to do. I use it for writing up articles and YouTube scripts, and it’s just a simple, quiet and distraction-free machine with a 10 hour battery life – so it works out really well. I paid just over £200 for it due to a cashback deal that was available at the time, and it’s been a great purchase.

My Favorite Games

That wraps up my current setup, but I wanted to briefly cover my favorite games. I love both Rocket League and Final Fantasy Ten.

I’ve always liked racing and football games, so Rocket League is naturally a game that I was always going to love – although in recent months I have found myself getting a bit wound up by it, for some reason, so I’m taking a bit of a break from it.

Then we have FFX: I love this game. The storyline is awesome, Blitzball is a brilliant side game, and I even enjoy chocobo racing!

Getting a really small time on the FFX Tidus Chocobo race
Getting a really small time (lower is better) on the FFX Tidus Chocobo race

I really enjoyed following the character development, and was gutted at the ending (when Tidus’ real ‘life’ was revealed). I did try playing FFX-2 to get Tidus and Yuna reunited, although I could never really get into FFX-2 – so I just watched all the YouTube summary videos for their romance instead!
